# Connect

## Install MobaXTerm

{% embed url="<https://download.mobatek.net/2302023012231703/MobaXterm_Installer_v23.0.zip>" %}
Home Edition, Windows Installer
{% endembed %}

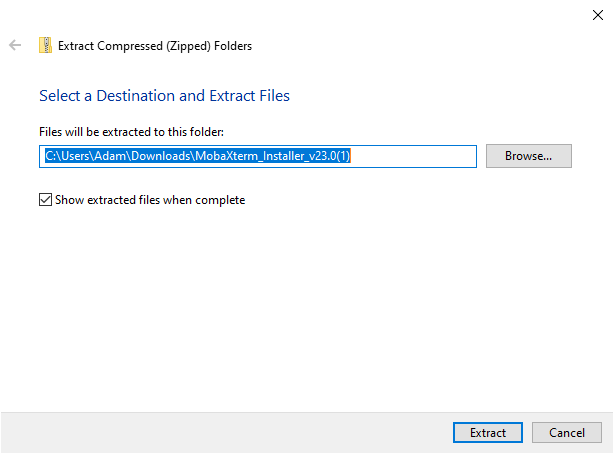

Use 7Zip or Windows Zip Extractor to extract the compressed folder into the Downloads/ folder

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FePsFa0cbMG065qqHdFk0%2Fimage.png?alt=media&#x26;token=48faa07c-4190-4a15-bd7d-d935f8f86c3c" alt=""><figcaption></figcaption></figure>

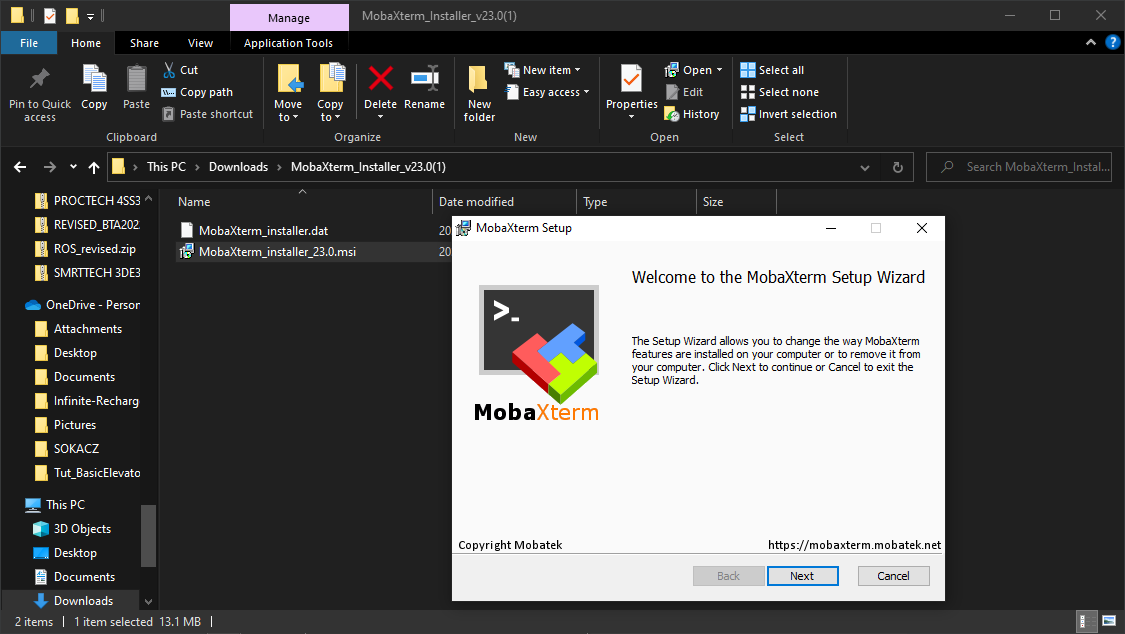

Run the MobaXTerm MSI installer with the default install configuration.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FWr9E2ZjarE7M2JcVkHjj%2Fimage.png?alt=media&#x26;token=fa4e2969-0eb5-4de4-9c9c-b2fc3610cbb2" alt=""><figcaption></figcaption></figure>

## MobaXTerm Session

Download the following session file to your Downloads/ folder. It contains the pre-configured environment for establishing an SSH tunnel to and streaming a graphical interface from each MacBot.

{% file src="<https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FranV6jpwTaU8HmLTs44O%2FMacBot.mxtsessions?alt=media&token=097af03c-15ba-478f-895a-7133785b1633>" %}

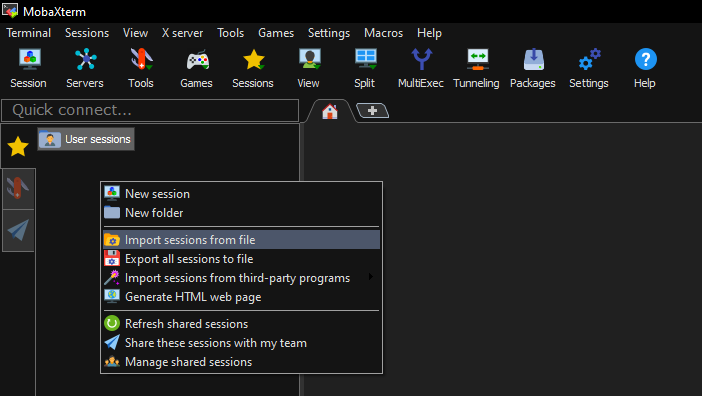

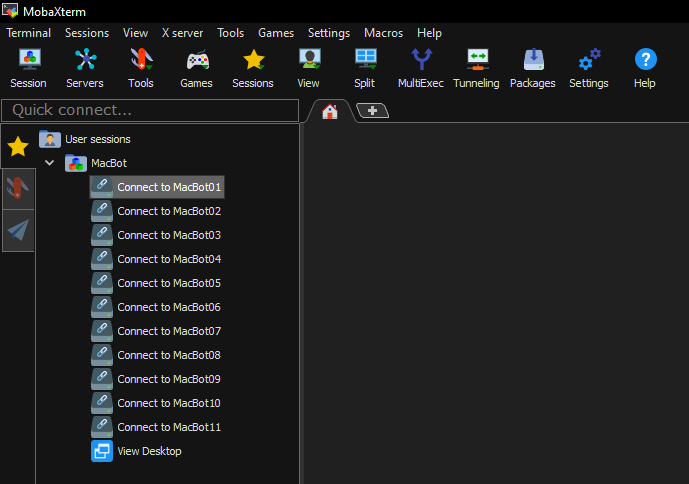

Open MobaXTerm and load the downloaded session file.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FlA44KOA8gNbmMpRxy2QW%2Fimage.png?alt=media&#x26;token=ac279e48-52b6-41fe-a955-fcf26f0532cc" alt=""><figcaption></figcaption></figure>

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FWLWimt5hvf19aL6iNjvY%2Fimage.png?alt=media&#x26;token=882f32bc-451f-481a-add4-9a9018ad481d" alt=""><figcaption></figcaption></figure>

## Connecting to the MacBot

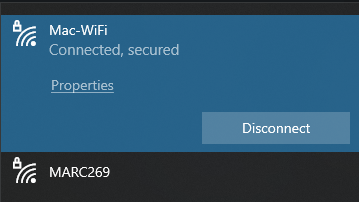

Ensure that you are connected to Mac-WiFi.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2Fd2DJPSYODVkuQUEM9cWH%2Fimage.png?alt=media&#x26;token=aac77b4a-7a92-4c72-a2ca-e797f2b76e7a" alt=""><figcaption></figcaption></figure>

Ensure that your MacBot is powered ON and booted by waiting 2 minutes.

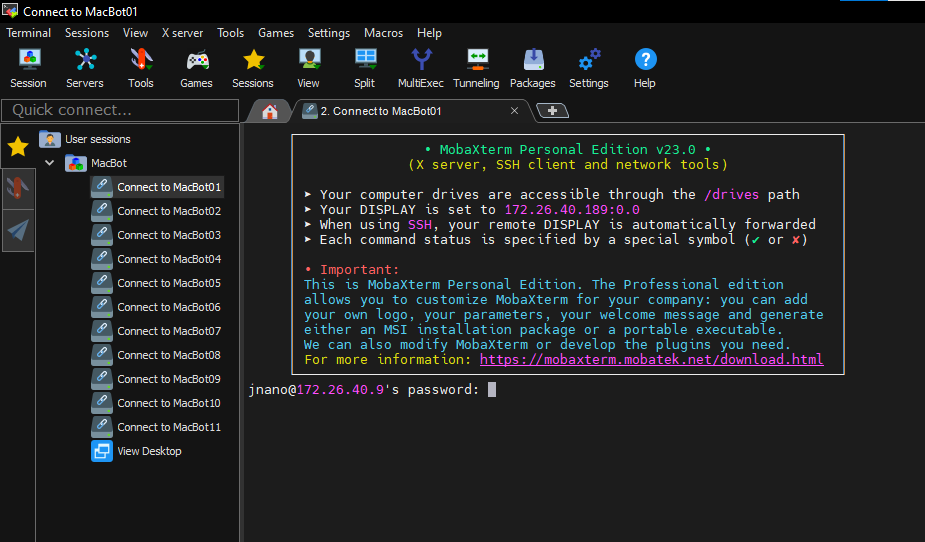

Click **Connect to MacBot##**.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FJH1fSvdQKY50ipLKltbi%2FMicrosoftTeams-image.png?alt=media&#x26;token=bd05cc32-e5cc-42c3-b3fc-cce913556204" alt=""><figcaption></figcaption></figure>

Enter the password for your MacBot, which can be found here:

{% content-ref url="setup" %}
[setup](https://adam-36.gitbook.io/macbot/setup)
{% endcontent-ref %}

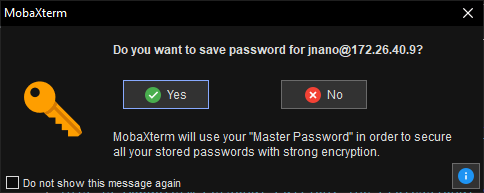

When prompted to save the password, always select **No**.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FFUWt705p5zl5Ey836Mc0%2FMicrosoftTeams-image%20(2).png?alt=media&#x26;token=9aee590e-4583-426c-8c1b-a0d9d93b364c" alt=""><figcaption></figcaption></figure>

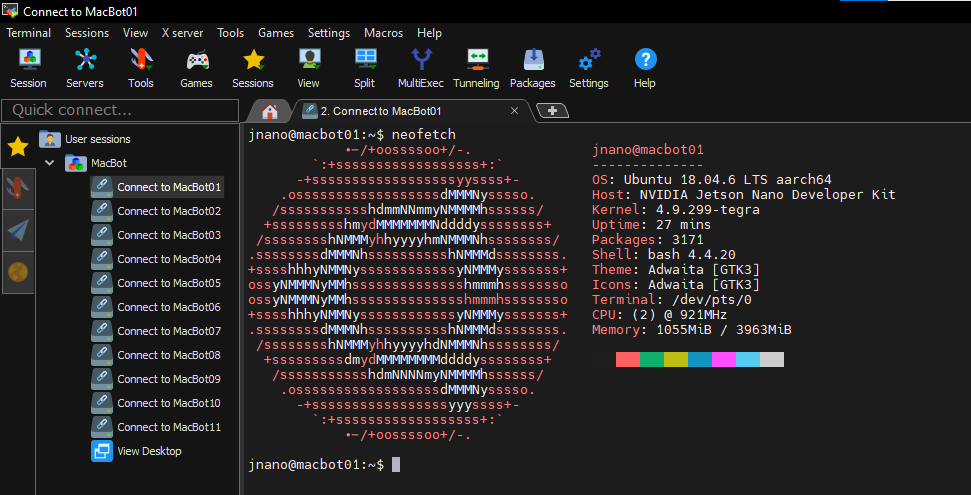

Run neofetch to verify that you are connected to the correct machine.

{% tabs %}
{% tab title="Run NeoFetch" %}

```bash
neofetch
```

{% endtab %}

{% tab title="Install NeoFetch" %}

```
sudo apt -y install neofetch
```

{% endtab %}
{% endtabs %}

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2ForTQ8gCwbvdxtDOTOULx%2FMicrosoftTeams-image(3).png?alt=media&#x26;token=607a37b5-392a-4ef0-92b7-d0a05be2b8c7" alt=""><figcaption></figcaption></figure>

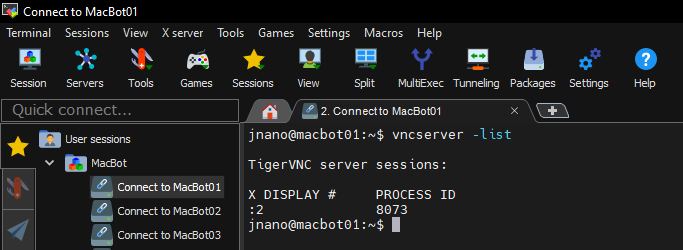

Ensure that the VNC server is running on port 5902 using the following command:

```bash
vncserver -list
```

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FWnq0Om9pl2G3AyX0hK9J%2FMicrosoftTeams-image(4).png?alt=media&#x26;token=be3cbf43-f051-42c8-99cf-09c566987e36" alt=""><figcaption></figcaption></figure>

Connect to the MacBot by pressing the **View Desktop** button.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FkiTEwq3MzgwEvwXpg98l%2FMicrosoftTeams-image(5).png?alt=media&#x26;token=cb9c8fa3-1a41-4894-8b72-f3c5455c3bb1" alt=""><figcaption></figcaption></figure>

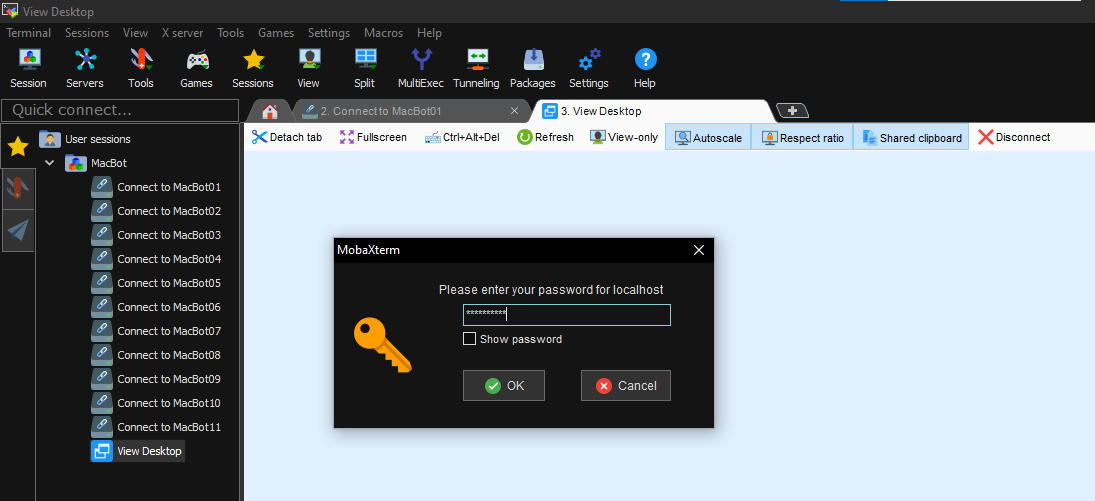

You will be prompted for your password once more. Press **OK**.

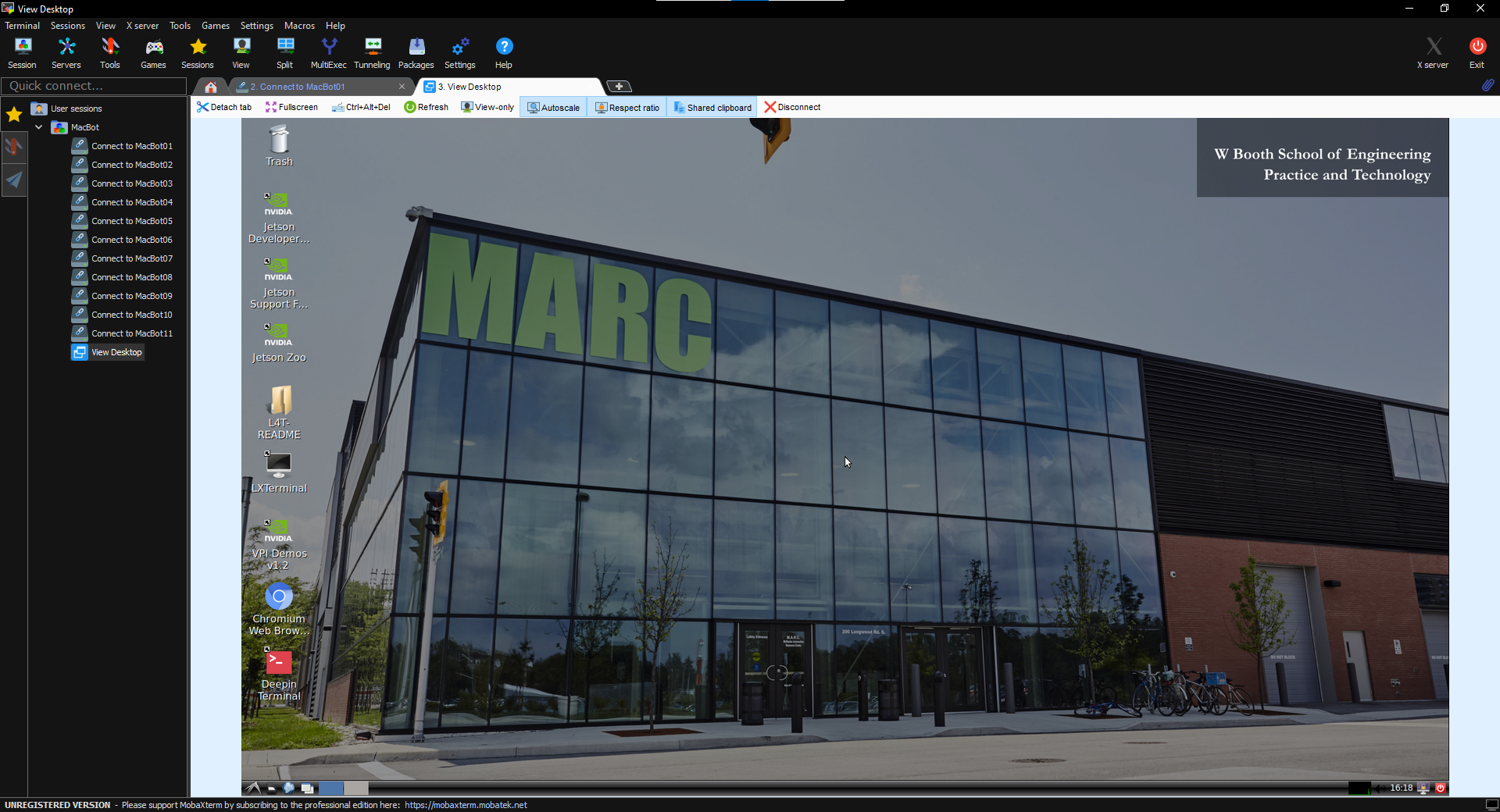

After a few moments, you will be able to see and interact with your desktop.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2Fyu7WP3TZP717ZclApovZ%2FMicrosoftTeams-image(6).png?alt=media&#x26;token=f1a6a066-68cf-4d68-b8ca-b16efdc2199f" alt=""><figcaption></figcaption></figure>

Click **Fullscreen** and untoggle **Always on Top**.

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FSBa59UJ53cYJCT6j4huF%2Fimage.png?alt=media&#x26;token=8fb4c262-98a5-487c-bfe9-8e87f78e08e9" alt=""><figcaption></figcaption></figure>

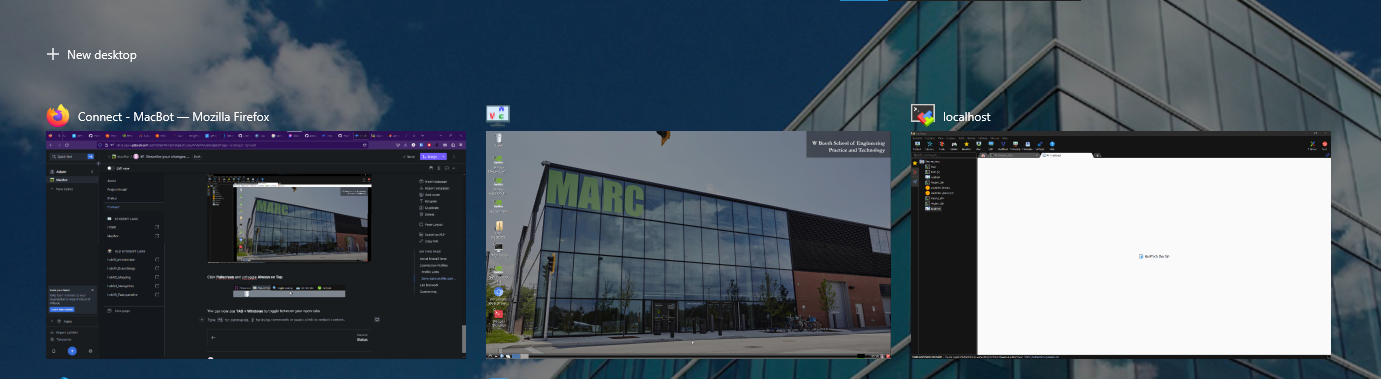

You can now use **TAB + Windows** to toggle between your open tabs

<figure><img src="https://440626438-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FiuPPvGMM3dkog9ZGPhqo%2Fuploads%2FOE1BG6JckoMfrRflFMOf%2Fimage.png?alt=media&#x26;token=78395c8e-cf48-4203-a9d6-6f870a93d4f2" alt=""><figcaption></figcaption></figure>
